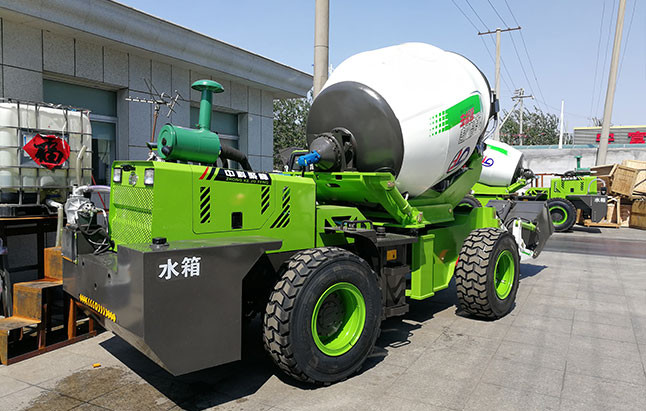

混凝土攪拌車是有專用車底盤、攪拌罐、進出料裝置、供水系統和液壓系統等組成。 攪拌車底盤：混凝土攪拌車使用的都是專用底盤，它有足夠的承載力和強勁的輸出功率，現在的攪拌車都是輕量化攪拌車設計，裝載量都是比較多的。
Concrete mixer truck is composed of special vehicle chassis, mixing tank, feeding and discharging device, water supply system and hydraulic system. Mixer truck chassis: the concrete mixer truck uses a special chassis, which has sufficient bearing capacity and strong output power. Now the mixer truck is designed as a lightweight mixer truck, and the loading capacity is relatively large.
攪拌罐：攪拌罐是整個水泥攪拌車上裝的主要部件，作為儲存混凝土的容器，對防止其固化、離析起著決定性的作用，攪拌罐由前錐段、后錐段、圓柱段、葉片、滾道等組焊而成，前端與減速機連接在一起，后部通過托輪支撐在副車架上，罐體采用高強度鋼板，葉片采用高強度細晶粒合金鋼制作而成，封頭整體一次旋壓成型，與加強板焊接后更加耐用。進料口設計成漏斗形，進料速度更快，整個罐體焊接完成后，再加工外圈，以保證同軸度要求。

Mixing tank: the mixing tank is the main component installed on the whole cement mixer truck. As a container for storing concrete, it plays a decisive role in preventing its solidification and segregation. The mixing tank is composed of front cone section, rear cone section, cylindrical section, blade, raceway, etc. the front end is connected with the reducer, the rear part is supported on the subframe through supporting wheels, and the tank body is made of high-strength steel plate, The blade is made of high-strength fine grain alloy steel. The head is formed by one-time spinning, which is more durable after welding with the reinforcing plate. The feed inlet is designed into a funnel shape with faster feeding speed. After the whole tank is welded, the outer ring is processed to ensure the coaxiality requirements.
副車架：副車架是商混車的主要承重部分，作業時的載荷幾乎都是通過它來支撐，加上在行駛中由于路面的顛簸和減速形成沖擊，都對副車架有影響，整個副車架由主梁、后臺支撐架組成。主梁采用整體箱型結構梁，從根本上增強了它的抗扭，保證了剛性要求。
Subframe: the subframe is the main load-bearing part of commercial hybrid vehicles. Almost all the loads during operation are supported by it. In addition, the impact caused by road bumps and deceleration during driving has an impact on the subframe. The whole subframe is composed of main beam and backstage support frame. The main beam adopts integral box structure beam, which fundamentally enhances its torsional resistance and ensures the rigidity requirements.
進出料裝置：進出料系統是由進料斗、出料斗、主卸料槽、之家、鎖緊架等組成，是商砼車的重要組成部分，直接影響進出料的速度和質量，進出料斗通過之架和副車架的后臺支撐架相連，出料斗和主卸料槽內加油襯板，襯板采用剛強度細晶粒合金鋼。
Feeding and discharging device: the feeding and discharging system is composed of feed hopper, discharge hopper, main discharge chute, home, locking frame, etc. it is an important part of commercial concrete truck, which directly affects the speed and quality of feeding and discharging. The inlet and outlet hopper is connected with the backstage support frame of the subframe through the frame. The discharge hopper and the main discharge chute are filled with lining plates, which are made of rigid strength fine grain alloy steel.
